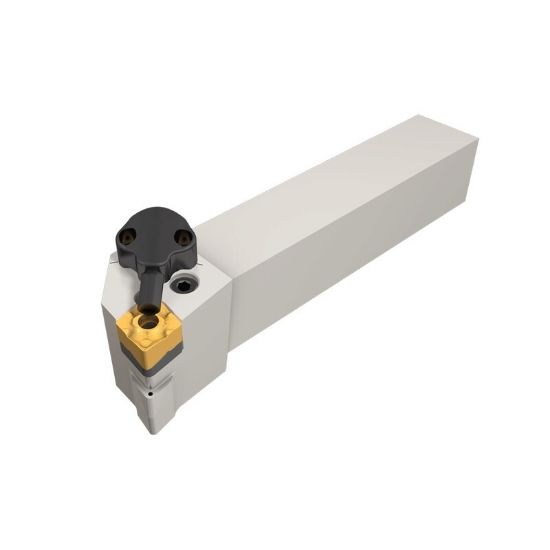

Picture of ISCAR PCLNL 16-3X-JHP Turning Stick Tool 80.0° Insert 1.000 Square

ISCAR PCLNL 16-3X-JHP Turning Stick Tool 80.0° Insert 1.000 Square

ANSI: PCLNL 16-3X-JHP

ISO: PCLNL 16-3X-JHP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3603451
Delivery date: 3-5 days
$288.00

Important Notes

Supplied with TCX 3 seat for CNMX 34. inserts and TCN 323 seat for CNMG 33. inserts. TCX 4 seat for CNMX 45. inserts and TCN 443 seat for CNMG 43. inserts.

Details

Lever lock tools with channels for high pressure coolant carrying the CNMX/CNMG 80° rhombic inserts.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Insert Type Negative
Made In USA No
Application Ext.Turning
Package Size 1
Shipping State Texas
Insert/Tool Tool
Dimensional Specifications
Machine Side Connection Type Stick Tool
Machine Side Connection Size 1.0000 25.40MM
Tool Width 1.0000
Shank/Pilot Dia 1.0000 25.40MM
Insert Size Ic 09 "33"
Lead Angle 95°
Tool Material Steel
Cutting & Machining Properties
Insert Style CN
Inter/Extern External
Insert Shape/Cutter Pocket Shape 80.0°
Hand R/L Left
