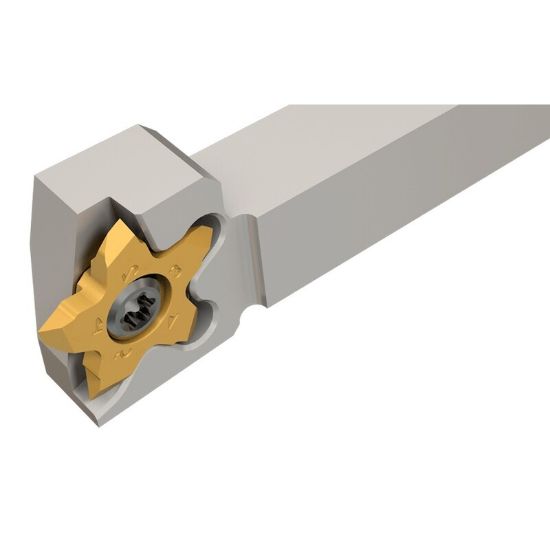

Picture of ISCAR PCHRS 9.5-17 Cut Off,Grooving,Groove Threading Stick Tool 0.375 Tool

ISCAR PCHRS 9.5-17 Cut Off,Grooving,Groove Threading Stick Tool 0.375 Tool

ANSI: PCHRS 9.5-17

ISO: PCHRS 9.5-17

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3337211
Delivery date: 3-5 days
$142.08

Details

Tools carrying PENTACUT-17 inserts (with 5 cutting edges) for grooving, parting and recessing next to high shoulders on small diameter parts.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Ext.Grooving, Parting, Ext.Groove Turning
Shipping State Texas
Package Size 1
Insert Type Positive
Insert Application General Purpose
Made In USA No
Dimensional Specifications
Tool Material Steel
Machine Side Connection Type Stick Tool
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Overall Len 4.7240 119.99MM
Machine Side Connection Size 0.3750 9.53MM
Insert Size Ic 17
Cutting Width 0.0100 0.25MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Pentagonal
Inter/Extern External
Insert Style PE
