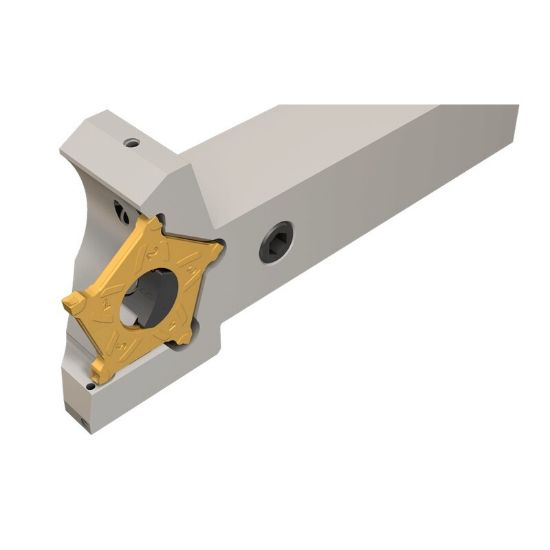

Picture of ISCAR PCHR 25.4-D40-3-JHP Cut Off,Face Grooving,Grooving Stick Tool 1.000 Tool

ISCAR PCHR 25.4-D40-3-JHP Cut Off,Face Grooving,Grooving Stick Tool 1.000 Tool

ANSI: PCHR 25.4-D40-3-JHP

ISO: PCHR 25.4-D40-3-JHP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3304725
Delivery date: 3-5 days
$349.44

Important Notes

For parting and grooving range.

Details

Tools with channels for high pressure coolant, carrying 5 cutting edged inserts, used for parting and grooving.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Made In USA No
Application Ext.Groove Turning, Ext.Grooving, Parting
Shipping State Texas
Package Size 1
Insert Type Positive
Insert/Tool Tool
Dimensional Specifications
Cutting Width 0.1180 3.00MM
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Tool Width 1.0000
Insert Size Ic 40
Overall Len 5.3150 135.00MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Cutting & Machining Properties
Insert Style PE
Hand R/L Right
Insert Shape/Cutter Pocket Shape Pentagonal
Inter/Extern External
