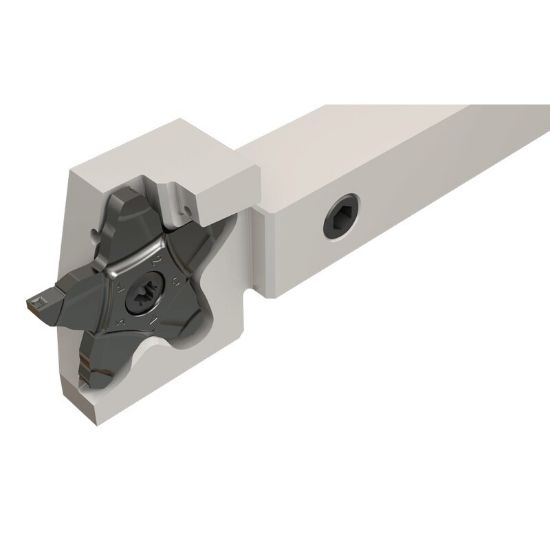

Picture of ISCAR PCHR 25.4-34-JHP Cut Off,Face Grooving,Grooving Stick Tool 1.000 Tool

ISCAR PCHR 25.4-34-JHP Cut Off,Face Grooving,Grooving Stick Tool 1.000 Tool

ANSI: PCHR 25.4-34-JHP

ISO: PCHR 25.4-34-JHP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3304714
Delivery date: 3-5 days
$276.48

Details

Grooving, parting and recessing tools carrying PENTA inserts with channels for high pressure coolant.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Ext.Groove Turning, Ext.Grooving, Parting
Insert/Tool Tool
Insert Type Positive
Insert Application General Purpose
Shipping State Texas
Package Size 1
Dimensional Specifications
Insert Size Ic 34
Cutting Width 0.0590 1.50MM
Shank/Pilot Dia 1.0000 25.40MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Overall Len 5.3200 135.13MM
Depth Of Cut Max 0.3940
Machine Side Connection Size 1.0000 25.40MM
Tool Width 1.0000
Cutting & Machining Properties
Insert Style PE
Hand R/L Right
Insert Shape/Cutter Pocket Shape Pentagonal
Inter/Extern External
