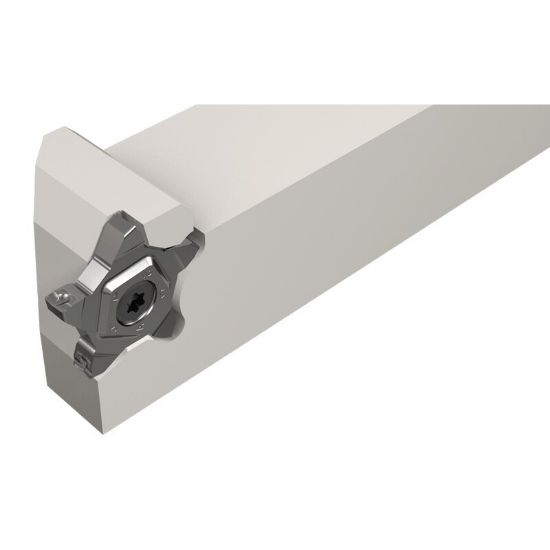

Picture of ISCAR PCHR 25.4-24-5 Cut Off,Grooving,Groove Threading Stick Tool 1.000 Tool

ISCAR PCHR 25.4-24-5 Cut Off,Grooving,Groove Threading Stick Tool 1.000 Tool

ANSI: PCHR 25.4-24-5

ISO: PCHR 25.4-24-5

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2302959
Delivery date: 3-5 days
$188.16

Details

Grooving, parting and recessing holders carrying inserts with 5 cutting edges.

WF=f1+f2 (according to insert width (CW) being used)

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Application Ext.Threading, Ext.Grooving, Parting, Swiss
Package Size 1
Insert/Tool Tool
Made In USA No
Insert Application General Purpose
Insert Type Positive
Dimensional Specifications
Machine Side Connection Size 1.0000 25.40MM
Tool Width 1.0000
Cutting Width 0.1260 3.20MM
Shank/Pilot Dia 1.0000 25.40MM
Overall Len 5.5000 139.70MM
Insert Size Ic 24
Tool Material Steel
Machine Side Connection Type Stick Tool
Depth Of Cut Max 0.2520
Cutting & Machining Properties
Hand R/L Right
Insert Shape/Cutter Pocket Shape Pentagonal
Inter/Extern External
Insert Style PE
