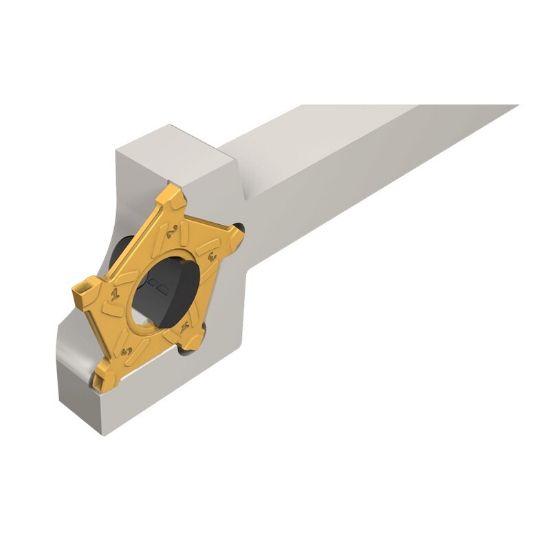

Picture of ISCAR PCHR 16-D32-3-IQ Cut Off,Grooving Stick Tool 0.629 Tool

ISCAR PCHR 16-D32-3-IQ Cut Off,Grooving Stick Tool 0.629 Tool

ANSI: PCHR 16-D32-3-IQ

ISO: PCHR 16-D32-3-IQ

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2302688
Delivery date: 3-5 days
$188.16

Details

Grooving and parting tools carrying inserts with 5 cutting edges.

For parting and grooving range, click on "More Info"

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Insert Application General Purpose
Application Swiss, Ext.Grooving, Parting
Insert Type Positive
Shipping State Texas
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Tool Width 0.6300
Tool Material Steel
Machine Side Connection Type Stick Tool
Insert Size Ic 40
Machine Side Connection Size 0.6299 16.00MM
Shank/Pilot Dia 0.6299 16.00MM
Cutting Width 0.1180 3.00MM
Overall Len 4.7240 119.99MM
Cutting & Machining Properties
Insert Style PE
Hand R/L Right
Insert Shape/Cutter Pocket Shape Pentagonal
Inter/Extern External
