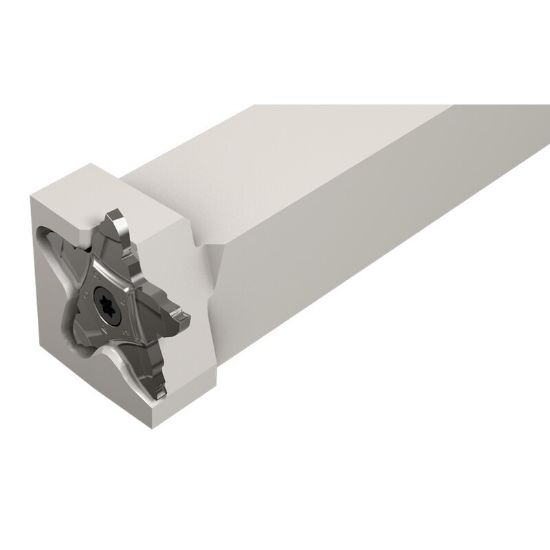

Picture of ISCAR PCHPLS 25.4-34 Face Grooving Stick Tool 1.000 Tool

ISCAR PCHPLS 25.4-34 Face Grooving Stick Tool 1.000 Tool

ANSI: PCHPLS 25.4-34

ISO: PCHPLS 25.4-34

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2302822
Delivery date: 3-5 days
$207.36

Details

Perpendicular shank tools carrying pentagonal inserts for machining next to long central shaft. The inserts are positioned nearly perpendicular to the shanks, slightly tilted to enable machining next to the long central shafts.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Perpendicular Groove Facing
Package Size 1
Shipping State Texas
Insert Type Positive
Insert Application General Purpose
Made In USA No
Dimensional Specifications
Insert Size Ic 34
Depth Of Cut Max 0.1970
Tool Material Steel
Machine Side Connection Type Stick Tool
Overall Len 5.5000 139.70MM
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Cutting Width 0.0940 2.39MM
Face Groove Min Dia 0.8700
Tool Width 1.0000
Cutting & Machining Properties
Insert Style PE
Hand R/L Left
Insert Shape/Cutter Pocket Shape Pentagonal
Inter/Extern External
