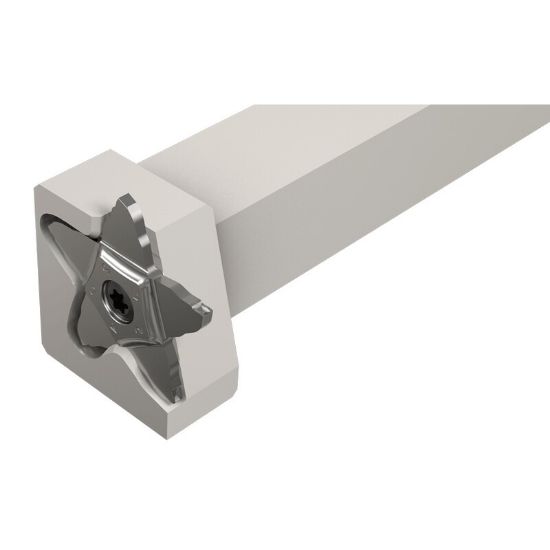

Picture of ISCAR PCHPL 16-24 Cut Off,Face Grooving,Grooving,Groove Threading Stick Tool 0.629 Tool

ISCAR PCHPL 16-24 Cut Off,Face Grooving,Grooving,Groove Threading Stick Tool 0.629 Tool

ANSI: PCHPL 16-24

ISO: PCHPL 16-24

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2302430
Delivery date: 3-5 days
$152.64

Details

Perpendicular PENTACUT holders carrying inserts with 5 cutting edges, for facing, grooving, parting and recessing.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Application Ext.Threading, Ext.Grooving, Parting, Face Grooving
Package Size 1
Made In USA No
Insert/Tool Tool
Insert Application General Purpose
Insert Type Positive
Dimensional Specifications
Tool Width 0.6300
Overall Len 4.7240 119.99MM
Cutting Width 0.0200 0.51MM
Insert Size Ic 24
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.6299 16.00MM
Shank/Pilot Dia 0.6299 16.00MM
Cutting & Machining Properties
Hand R/L Left
Insert Shape/Cutter Pocket Shape Pentagonal
Inter/Extern External
Insert Style PE
