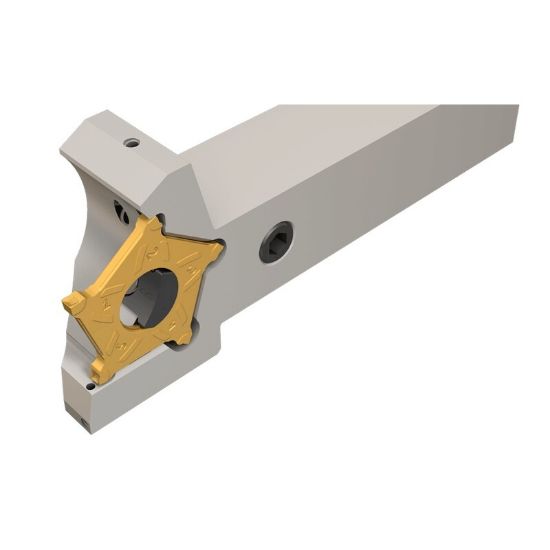

Picture of ISCAR PCHL 19-D32-2-JHP Cut Off,Face Grooving,Grooving Stick Tool 0.750 Tool

ISCAR PCHL 19-D32-2-JHP Cut Off,Face Grooving,Grooving Stick Tool 0.750 Tool

ANSI: PCHL 19-D32-2-JHP

ISO: PCHL 19-D32-2-JHP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3304738
Delivery date: 3-5 days
$339.84

Important Notes

For parting and grooving range.

Details

Tools with channels for high pressure coolant, carrying 5 cutting edged inserts, used for parting and grooving.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Insert Type Positive
Application Ext.Groove Turning, Ext.Grooving, Parting
Made In USA No
Insert/Tool Tool
Package Size 1
Shipping State Texas
Dimensional Specifications
Tool Material Steel
Machine Side Connection Type Stick Tool
Overall Len 4.7200 119.89MM
Machine Side Connection Size 0.7500 19.05MM
Tool Width 0.7500
Insert Size Ic 32
Cutting Width 0.0790 2.01MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Cutting & Machining Properties
Insert Style PE
Insert Shape/Cutter Pocket Shape Pentagonal
Inter/Extern External
Hand R/L Left
