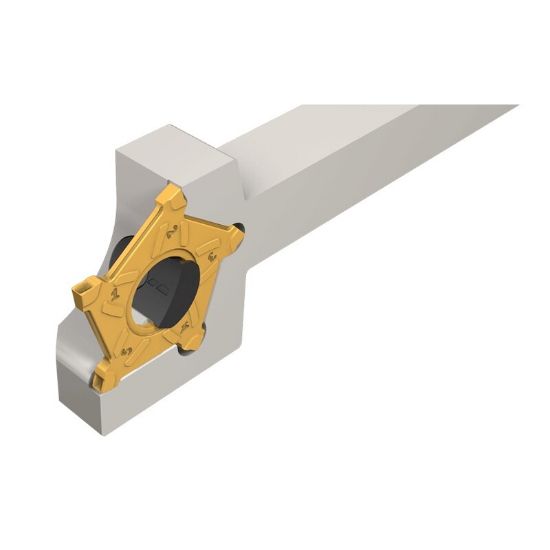

Picture of ISCAR PCHL 16-D32-2-IQ Cut Off,Grooving Stick Tool 0.629 Tool

ISCAR PCHL 16-D32-2-IQ Cut Off,Grooving Stick Tool 0.629 Tool

ANSI: PCHL 16-D32-2-IQ

ISO: PCHL 16-D32-2-IQ

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2302673
Delivery date: 3-5 days
$188.16

Details

Grooving and parting tools carrying inserts with 5 cutting edges.

For parting and grooving range, click on "More Info"

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert Type Positive
Insert Application General Purpose
Shipping State Texas
Insert/Tool Tool
Application Ext.Grooving, Parting, Swiss
Made In USA No
Dimensional Specifications
Cutting Width 0.0790 2.01MM
Insert Size Ic 40
Machine Side Connection Size 0.6299 16.00MM
Shank/Pilot Dia 0.6299 16.00MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Tool Width 0.6300
Overall Len 4.7240 119.99MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Pentagonal
Inter/Extern External
Hand R/L Left
Insert Style PE
