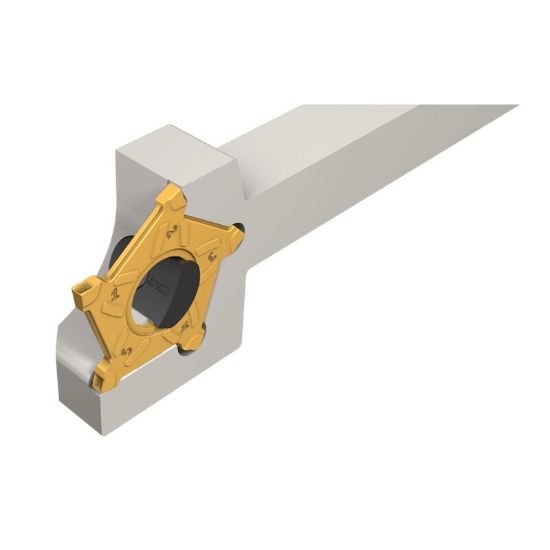

Picture of ISCAR PCHL 16-D22-3-IQ Cut Off,Grooving Stick Tool 0.629 Tool

ISCAR PCHL 16-D22-3-IQ Cut Off,Grooving Stick Tool 0.629 Tool

ANSI: PCHL 16-D22-3-IQ

ISO: PCHL 16-D22-3-IQ

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2302663
Delivery date: 3-5 days
$188.16

Details

Grooving and parting tools carrying inserts with 5 cutting edges.

For parting and grooving range, click on "More Info"

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Package Size 1
Insert Type Positive
Insert/Tool Tool
Application Ext.Grooving, Parting, Swiss
Insert Application General Purpose
Made In USA No
Dimensional Specifications
Tool Width 0.6300
Insert Size Ic 40
Machine Side Connection Size 0.6299 16.00MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Cutting Width 0.1180 3.00MM
Overall Len 4.7240 119.99MM
Shank/Pilot Dia 0.6299 16.00MM
Cutting & Machining Properties
Inter/Extern External
Insert Style PE
Insert Shape/Cutter Pocket Shape Pentagonal
Hand R/L Left
