Picture of ISCAR PCHL 16-D22-2-JHP Cut Off,Face Grooving,Grooving Stick Tool 0.629 Tool

ISCAR PCHL 16-D22-2-JHP Cut Off,Face Grooving,Grooving Stick Tool 0.629 Tool

ANSI: PCHL 16-D22-2-JHP

ISO: PCHL 16-D22-2-JHP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3304742
Delivery date: 3-5 days
$280.32

Important Notes

For parting and grooving range.

Details

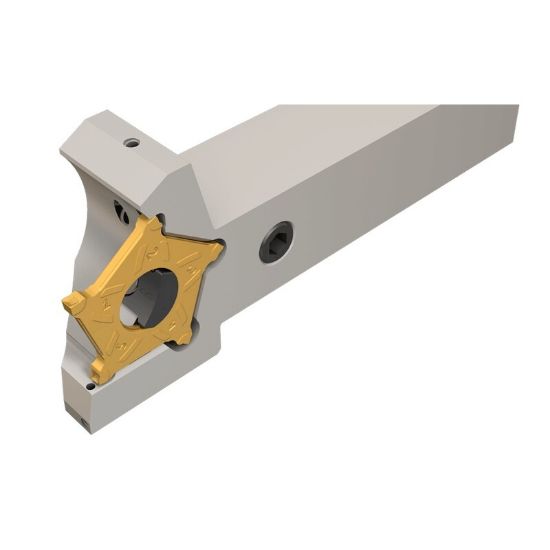

Tools with channels for high pressure coolant, carrying 5 cutting edged inserts, used for parting and grooving.

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Insert Application General Purpose
Made In USA No
Application Ext.Groove Turning, Ext.Grooving, Parting
Shipping State Texas
Insert/Tool Tool
Package Size 1
Dimensional Specifications
Machine Side Connection Size 0.6299 16.00MM
Overall Len 4.7830 121.49MM
Shank/Pilot Dia 0.6299 16.00MM
Tool Width 0.6300
Insert Size Ic 22
Tool Material Steel
Machine Side Connection Type Stick Tool
Cutting Width 0.0790 2.01MM
Cutting & Machining Properties
Hand R/L Left
Insert Style PE
Insert Shape/Cutter Pocket Shape Pentagonal
Inter/Extern External
