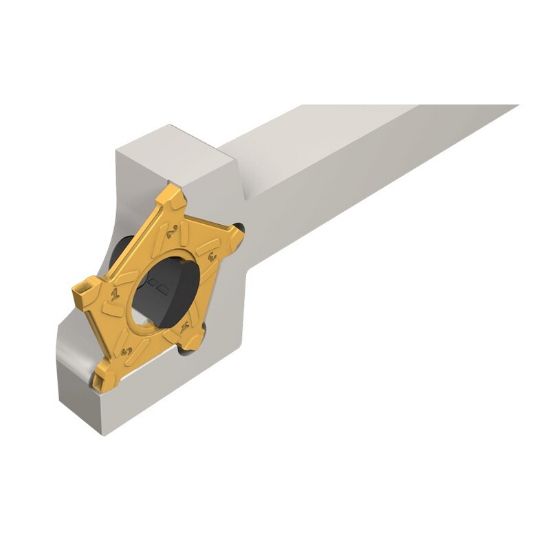

Picture of ISCAR PCHL 12.7-D22-3-IQ Cut Off,Grooving Stick Tool 0.500 Tool

ISCAR PCHL 12.7-D22-3-IQ Cut Off,Grooving Stick Tool 0.500 Tool

ANSI: PCHL 12.7-D22-3-IQ

ISO: PCHL 12.7-D22-3-IQ

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2302669
Delivery date: 3-5 days
$182.40

Details

Grooving and parting tools carrying inserts with 5 cutting edges.

For parting and grooving range, click on "More Info"

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Insert/Tool Tool
Application Ext.Grooving, Parting, Swiss
Insert Application General Purpose
Made In USA No
Package Size 1
Shipping State Texas
Dimensional Specifications
Cutting Width 0.1180 3.00MM
Machine Side Connection Size 0.5000 12.70MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Insert Size Ic 40
Tool Width 0.5000
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Overall Len 4.7200 119.89MM
Cutting & Machining Properties
Hand R/L Left
Insert Shape/Cutter Pocket Shape Pentagonal
Inter/Extern External
Insert Style PE
