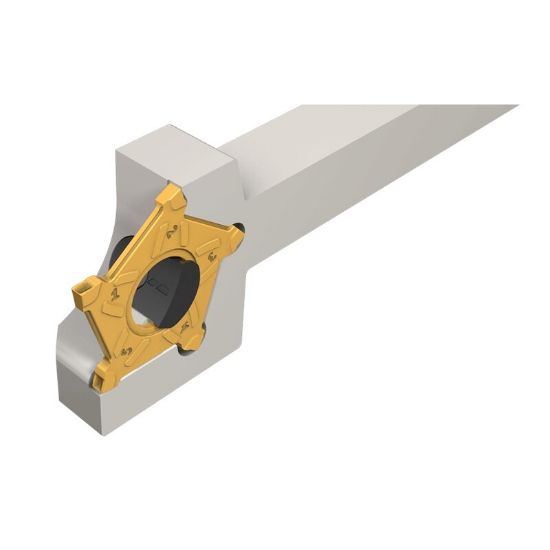

Picture of ISCAR PCHL 12.7-D22-2-IQ Cut Off,Grooving Stick Tool 0.500 Tool

ISCAR PCHL 12.7-D22-2-IQ Cut Off,Grooving Stick Tool 0.500 Tool

ANSI: PCHL 12.7-D22-2-IQ

ISO: PCHL 12.7-D22-2-IQ

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2302657
Delivery date: 3-5 days
$182.40

Details

Grooving and parting tools carrying inserts with 5 cutting edges.

For parting and grooving range, click on "More Info"

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Application Swiss, Ext.Grooving, Parting
Made In USA No
Package Size 1
Shipping State Texas
Insert/Tool Tool
Insert Type Positive
Dimensional Specifications
Tool Width 0.5000
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Cutting Width 0.0790 2.01MM
Overall Len 4.7200 119.89MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Insert Size Ic 40
Machine Side Connection Size 0.5000 12.70MM
Cutting & Machining Properties
Hand R/L Left
Inter/Extern External
Insert Style PE
Insert Shape/Cutter Pocket Shape Pentagonal
