  • ISCAR P290 SM D3.-6-2.8-1.25-18 Milling Cutter 90.0°, Corn Cob 3.000 Diameter Face Mill 1.250 3.940 OAL 24 Flute

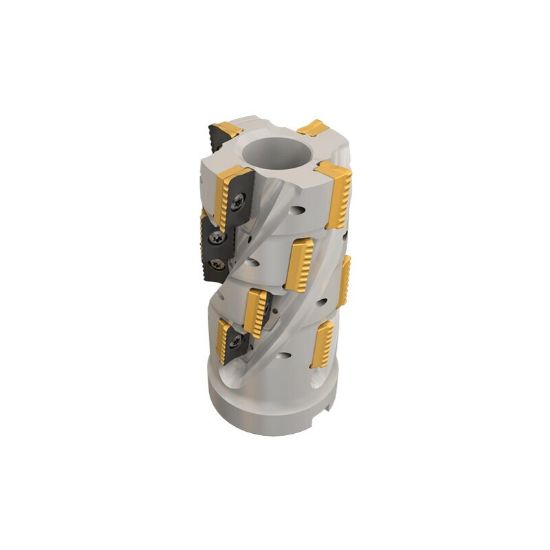

Picture of ISCAR P290 SM D3.-6-2.8-1.25-18 Milling Cutter 90.0°, Corn Cob 3.000 Diameter Face Mill 1.250 3.940 OAL 24 Flute

ISCAR P290 SM D3.-6-2.8-1.25-18 Milling Cutter 90.0°, Corn Cob 3.000 Diameter Face Mill 1.250 3.940 OAL 24 Flute

ANSI: P290 SM D3.-6-2.8-1.25-18

ISO: P290 SM D3.-6-2.8-1.25-18

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3137446
Delivery date: 3-5 days
$1,795.20

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Insert Application Roughing
Made In USA No
Shipping State Texas
Application Long Edge Milling, Side Milling
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Cutter Dia 3.0000 76.20MM
Insert Size Ic 18
Machine Side Connection Type Face Mill/Shell Mill
Cut Dia Min 3.0000 76.20MM
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Flutes/Inserts 24
Depth Of Cut Max 0.2360
Overall Len 3.9400 100.08MM
Cutting & Machining Properties
Insert Style P290
Cool Sply Type Through Hole
Insert Shape/Cutter Pocket Shape Parallelogram
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 7001973
