  • ISCAR P290 SM D2.0-4-2.8-1.0-18 Milling Cutter 90.0°, Corn Cob 2.000 Diameter Face Mill 1.000 4.130 OAL 16 Flute

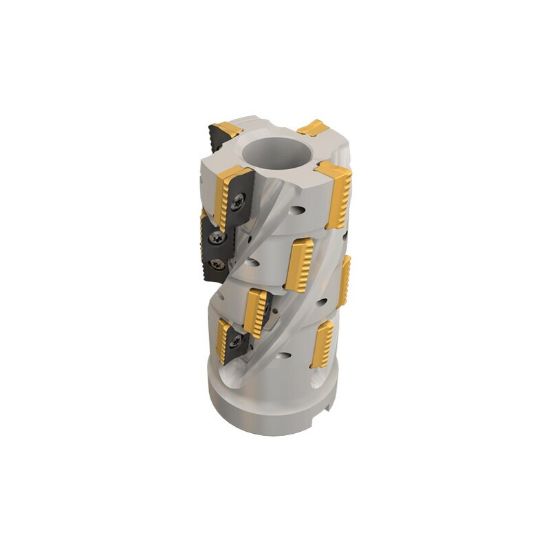

Picture of ISCAR P290 SM D2.0-4-2.8-1.0-18 Milling Cutter 90.0°, Corn Cob 2.000 Diameter Face Mill 1.000 4.130 OAL 16 Flute

ISCAR P290 SM D2.0-4-2.8-1.0-18 Milling Cutter 90.0°, Corn Cob 2.000 Diameter Face Mill 1.000 4.130 OAL 16 Flute

ANSI: P290 SM D2.0-4-2.8-1.0-18

ISO: P290 SM D2.0-4-2.8-1.0-18

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3110830
Delivery date: 3-5 days
$937.92

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application Roughing
Application Long Edge Milling, Side Milling
Package Size 1
Shipping State Texas
Insert Type Positive
Made In USA No
Dimensional Specifications
Tool Material Steel
Depth Of Cut Max 0.7080
Overall Len 4.1300 104.90MM
Flutes/Inserts 16
Cutter Dia 2.0000 50.80MM
Machine Side Connection Size 1.0000 25.40MM
Insert Size Ic 18
Machine Side Connection Type Face Mill/Shell Mill
Cut Dia Min 2.0000 50.80MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Other
Cool Sply Type Through Hole
Insert Style AC
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 7000402
