  • ISCAR P290 SM D2.0-4-2.1-1.0-18 Milling Cutter 90.0°, Corn Cob 2.000 Diameter Face Mill 1.000 3.150 OAL 12 Flute

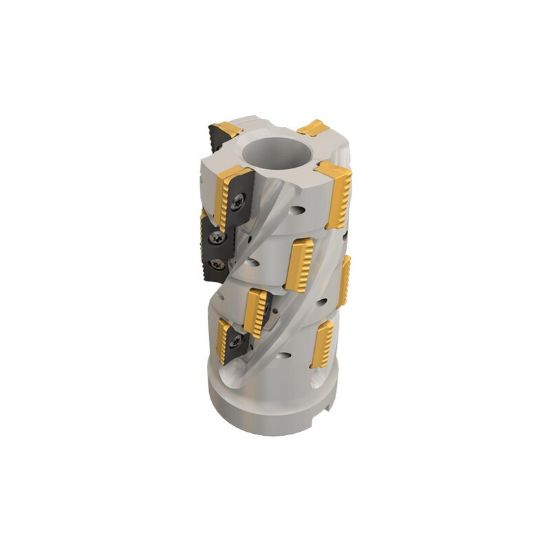

Picture of ISCAR P290 SM D2.0-4-2.1-1.0-18 Milling Cutter 90.0°, Corn Cob 2.000 Diameter Face Mill 1.000 3.150 OAL 12 Flute

ISCAR P290 SM D2.0-4-2.1-1.0-18 Milling Cutter 90.0°, Corn Cob 2.000 Diameter Face Mill 1.000 3.150 OAL 12 Flute

ANSI: P290 SM D2.0-4-2.1-1.0-18

ISO: P290 SM D2.0-4-2.1-1.0-18

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3110829
Delivery date: 3-5 days
$864.00

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Made In USA No
Insert/Tool Tool
Insert Type Positive
Application Long Edge Milling, Side Milling
Package Size 1
Insert Application Roughing
Dimensional Specifications
Cutter Dia 2.0000 50.80MM
Machine Side Connection Size 1.0000 25.40MM
Overall Len 3.1500 80.01MM
Depth Of Cut Max 2.8000
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Flutes/Inserts 12
Insert Size Ic 18
Cut Dia Min 2.0000 50.80MM
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Other
Insert Style AC
Cool Sply Type Through Hole
Fasteners & Connectors
Insert Screw 7000402
