  • ISCAR P290 SM D1.5-4-1.4-.75-12 Milling Cutter 90.0°, Corn Cob 1.500 Diameter Face Mill 0.750 2.520 OAL 12 Flute

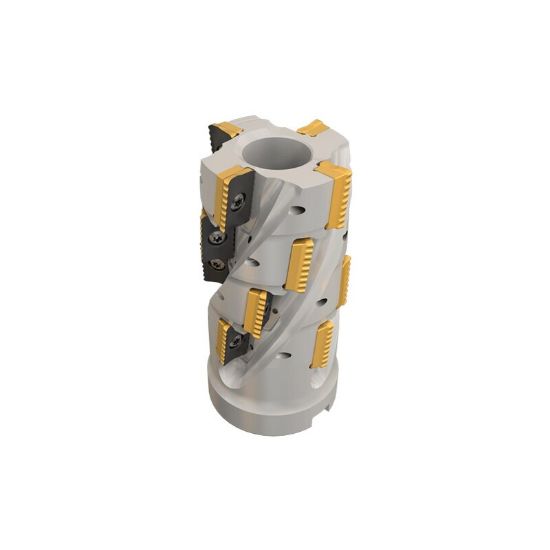

Picture of ISCAR P290 SM D1.5-4-1.4-.75-12 Milling Cutter 90.0°, Corn Cob 1.500 Diameter Face Mill 0.750 2.520 OAL 12 Flute

ISCAR P290 SM D1.5-4-1.4-.75-12 Milling Cutter 90.0°, Corn Cob 1.500 Diameter Face Mill 0.750 2.520 OAL 12 Flute

ANSI: P290 SM D1.5-4-1.4-.75-12

ISO: P290 SM D1.5-4-1.4-.75-12

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3110890
Delivery date: 3-5 days
$740.16

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Insert/Tool Tool
Insert Application Roughing
Made In USA No
Application Long Edge Milling, Side Milling
Package Size 1
Insert Type Positive
Dimensional Specifications
Depth Of Cut Max 1.9000
Machine Side Connection Size 0.7500 19.05MM
Overall Len 2.5200 64.01MM
Flutes/Inserts 12
Cutter Dia 1.5000 38.10MM - 1-1/2
Tool Material Steel
Insert Size Ic 12
Machine Side Connection Type Face Mill/Shell Mill
Cut Dia Min 1.5000 38.10MM - 1-1/2
Cutting & Machining Properties
Coolant Thru Yes
Cool Sply Type Through Hole
Insert Shape/Cutter Pocket Shape Other
Insert Style AC
Fasteners & Connectors
Insert Screw 7006979
