  • ISCAR P290 FPW D3.00-8-1.00-18 Milling Cutter 90.0° 3.000 Diameter Face Mill 1.000 1.750 OAL 8 Flute

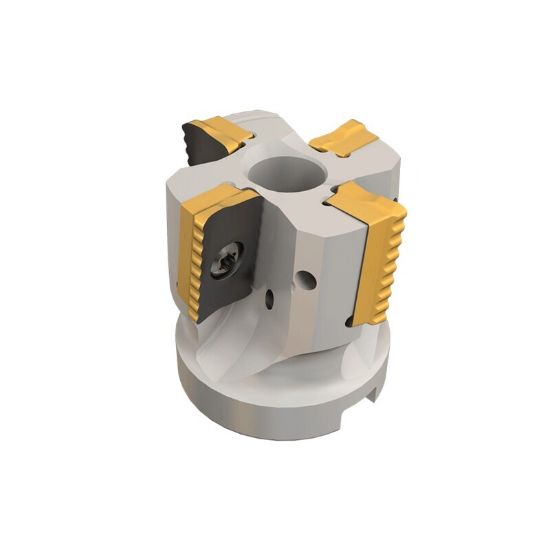

Picture of ISCAR P290 FPW D3.00-8-1.00-18 Milling Cutter 90.0° 3.000 Diameter Face Mill 1.000 1.750 OAL 8 Flute

ISCAR P290 FPW D3.00-8-1.00-18 Milling Cutter 90.0° 3.000 Diameter Face Mill 1.000 1.750 OAL 8 Flute

ANSI: P290 FPW D3.00-8-1.00-18

ISO: P290 FPW D3.00-8-1.00-18

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3110788
Delivery date: 3-5 days
$879.36

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Slot Milling, Face Milling
Insert Type Positive
Package Size 1
Insert Application Roughing, Semi Finishing
Made In USA No
Insert/Tool Tool
Shipping State Texas
Dimensional Specifications
Overall Len 1.7500 44.45MM
Cut Dia Max 3.0000 76.20MM
Cutter Dia 3.0000 76.20MM
Insert Size Ic 18
Depth Of Cut Max 0.7080
Machine Side Connection Type Face Mill/Shell Mill
Cut Dia Min 3.0000 76.20MM
Tool Material Steel
Machine Side Connection Size 1.0000 25.40MM
Flutes/Inserts 8
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Other
Insert Style AC
Cool Sply Type Through Hole
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 7000402
