  • ISCAR P290 FPW D2.50-6-1.00-18 Milling Cutter 90.0° 2.500 Diameter Face Mill 1.000 1.570 OAL 6 Flute

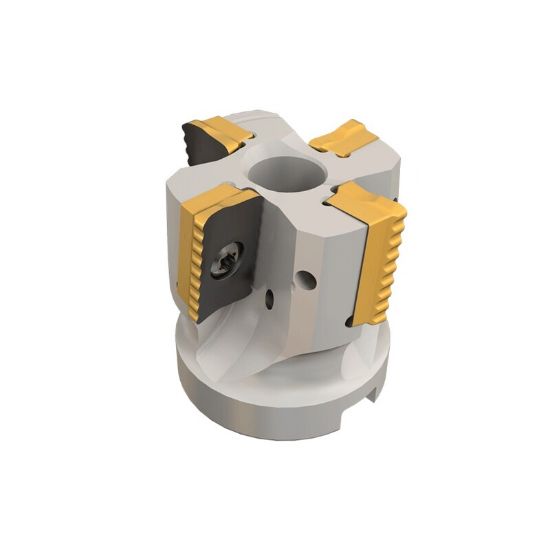

Picture of ISCAR P290 FPW D2.50-6-1.00-18 Milling Cutter 90.0° 2.500 Diameter Face Mill 1.000 1.570 OAL 6 Flute

ISCAR P290 FPW D2.50-6-1.00-18 Milling Cutter 90.0° 2.500 Diameter Face Mill 1.000 1.570 OAL 6 Flute

ANSI: P290 FPW D2.50-6-1.00-18

ISO: P290 FPW D2.50-6-1.00-18

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3110787
Delivery date: 3-5 days
$697.92

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Side Milling, Face Milling, Slot Milling
Insert/Tool Tool
Insert Application Semi Finishing, Roughing
Shipping State Texas
Insert Type Positive
Made In USA No
Dimensional Specifications
Depth Of Cut Max 0.7080
Cutter Dia 2.5000 63.50MM - 2-1/2
Tool Material Steel
Overall Len 1.5700 39.88MM
Flutes/Inserts 6
Cut Dia Min 2.5000 63.50MM - 2-1/2
Machine Side Connection Size 1.0000 25.40MM
Insert Size Ic 18
Cut Dia Max 2.5000 63.50MM - 2-1/2
Machine Side Connection Type Face Mill/Shell Mill
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Other
Insert Style AC
Coolant Thru Yes
Cool Sply Type Through Hole
Fasteners & Connectors
Insert Screw 7000402
