  • ISCAR P290 FPW D2.00-6-.75-12 Milling Cutter 90.0° 2.000 Diameter Face Mill 0.750 1.575 OAL 6 Flute

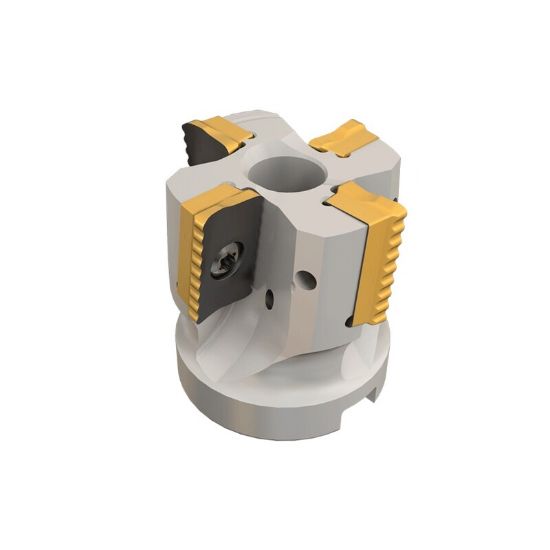

Picture of ISCAR P290 FPW D2.00-6-.75-12 Milling Cutter 90.0° 2.000 Diameter Face Mill 0.750 1.575 OAL 6 Flute

ISCAR P290 FPW D2.00-6-.75-12 Milling Cutter 90.0° 2.000 Diameter Face Mill 0.750 1.575 OAL 6 Flute

ANSI: P290 FPW D2.00-6-.75-12

ISO: P290 FPW D2.00-6-.75-12

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3110879
Delivery date: 3-5 days
$585.60

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Face Milling, Slot Milling, Side Milling
Insert Application Semi Finishing, Roughing
Shipping State Texas
Package Size 1
Made In USA No
Insert/Tool Tool
Dimensional Specifications
Depth Of Cut Max 0.4720
Cutter Dia 2.0000 50.80MM
Flutes/Inserts 6
Insert Size Ic 12
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Overall Len 1.5750 40.01MM
Cut Dia Min 2.0000 50.80MM
Cut Dia Max 2.0000 50.80MM
Cutting & Machining Properties
Cool Sply Type Through Hole
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Other
Insert Style AC
Fasteners & Connectors
Insert Screw 7006979
