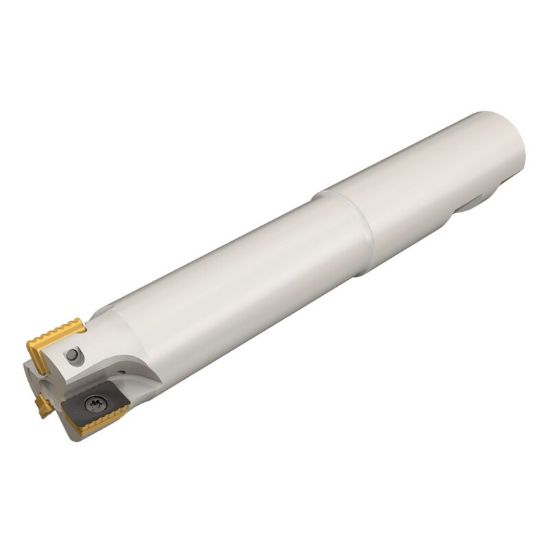

ISCAR P290 EPW.75-2-4.0-W.75-12 Milling Cutter 90.0° 0.750 Diameter Weldon 0.750 4.000 OAL 2 Flute

ANSI: P290 EPW.75-2-4.0-W.75-12

ISO: P290 EPW.75-2-4.0-W.75-12

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3181277
Delivery date: 3-5 days
$308.16

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Made In USA No
Application Side Milling, Face Milling
Insert Type Positive
Shipping State Texas
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Insert Size Ic 12
Depth Of Cut Max 0.4720
Overall Len 4.0000 101.60MM
Flutes/Inserts 2
Tool Material Steel
Cut Dia Max 0.7500 19.05MM - 3/4
Machine Side Connection Type Weldon
Cut Dia Min 0.7500 19.05MM - 3/4
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Cutter Dia 0.7500 19.05MM - 3/4
Machine Side Connection Size 0.7500 19.05MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Other
Insert Style AC
Cool Sply Type Through Hole
Max Ramp Angle 2.00°
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 7006979
