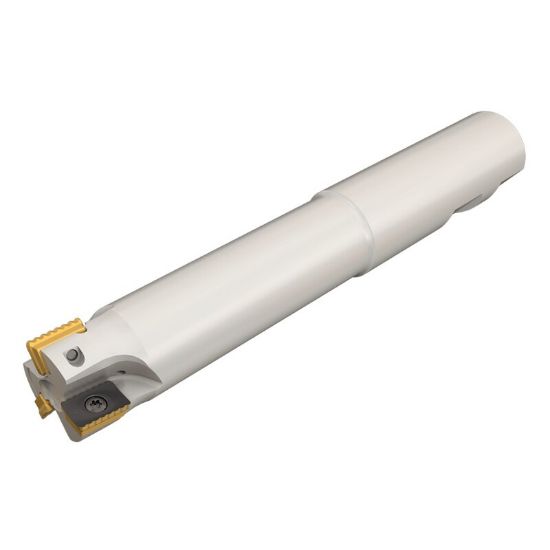

ISCAR P290 EPW150-4-8.0-W125-18 Milling Cutter 90.0° 1.500 Diameter Weldon 1.250 8.000 OAL 4 Flute

ANSI: P290 EPW150-4-8.0-W125-18

ISO: P290 EPW150-4-8.0-W125-18

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3110800
Delivery date: 3-5 days
$499.20

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Package Size 1
Insert/Tool Tool
Application Side Milling, Face Milling
Made In USA No
Shipping State Texas
Insert Type Positive
Dimensional Specifications
Depth Of Cut Max 0.7080
Flutes/Inserts 4
Tool Material Steel
Machine Side Connection Type Weldon
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Insert Size Ic 18
Machine Side Connection Size 1.2500 31.75MM
Cutter Dia 1.5000 38.10MM - 1-1/2
Cut Dia Max 1.5000 38.10MM - 1-1/2
Cut Dia Min 1.5000 38.10MM - 1-1/2
Overall Len 8.0000 203.20MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Other
Insert Style AC
Max Ramp Angle 1.50°
Coolant Thru Yes
Cool Sply Type Through Hole
Fasteners & Connectors
Insert Screw 7000402
