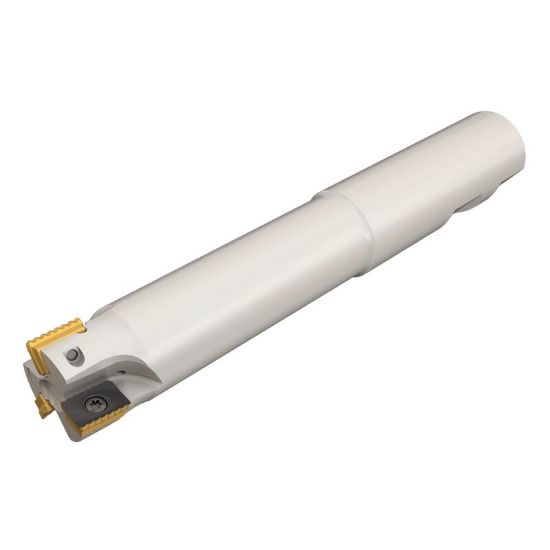

Picture of ISCAR P290 EPW125-3-9.0-W125-18 Milling Cutter 90.0° 1.250 Diameter Weldon 1.250 9.000 OAL 3 Flute

ISCAR P290 EPW125-3-9.0-W125-18 Milling Cutter 90.0° 1.250 Diameter Weldon 1.250 9.000 OAL 3 Flute

ANSI: P290 EPW125-3-9.0-W125-18

ISO: P290 EPW125-3-9.0-W125-18

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3110797
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Face Milling, Side Milling
Insert Application Semi Finishing, Roughing
Shipping State Texas
Insert/Tool Tool
Made In USA No
Package Size 1
Dimensional Specifications
Cut Dia Min 1.2500 31.75MM - 1-1/4
Machine Side Connection Type Weldon
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Insert Size Ic 18
Cutter Dia 1.2500 31.75MM - 1-1/4
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 3
Depth Of Cut Max 0.7080
Cut Dia Max 1.2500 31.75MM - 1-1/4
Overall Len 9.0000 228.60MM
Cutting & Machining Properties
Cool Sply Type Through Hole
Insert Shape/Cutter Pocket Shape Other
Insert Style AC
Coolant Thru Yes
Max Ramp Angle 2.00°
Fasteners & Connectors
Insert Screw 7000402
