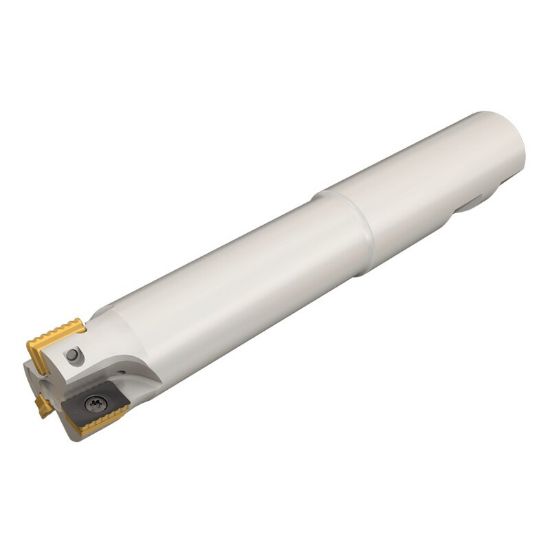

Picture of ISCAR P290 EPW100-3-5.1-W1.0-12 Milling Cutter 90.0° 1.000 Diameter Weldon 1.000 5.100 OAL 3 Flute

ISCAR P290 EPW100-3-5.1-W1.0-12 Milling Cutter 90.0° 1.000 Diameter Weldon 1.000 5.100 OAL 3 Flute

ANSI: P290 EPW100-3-5.1-W1.0-12

ISO: P290 EPW100-3-5.1-W1.0-12

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3181278
Delivery date: 3-5 days
$402.24
Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Insert Type Positive
Application Face Milling, Side Milling
Shipping State Texas
Insert Application Roughing, Semi Finishing
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Cutter Dia 1.0000 25.40MM
Cut Dia Max 1.0000 25.40MM
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Overall Len 5.1000 129.54MM
Flutes/Inserts 3
Insert Size Ic 12
Depth Of Cut Max 0.4720
Machine Side Connection Type Weldon
Cut Dia Min 1.0000 25.40MM
Tool Material Steel
Cutting & Machining Properties
Cool Sply Type Through Hole
Coolant Thru Yes
Insert Style AC
Insert Shape/Cutter Pocket Shape Other
Max Ramp Angle 1.40°
Fasteners & Connectors
Insert Screw 7006979
