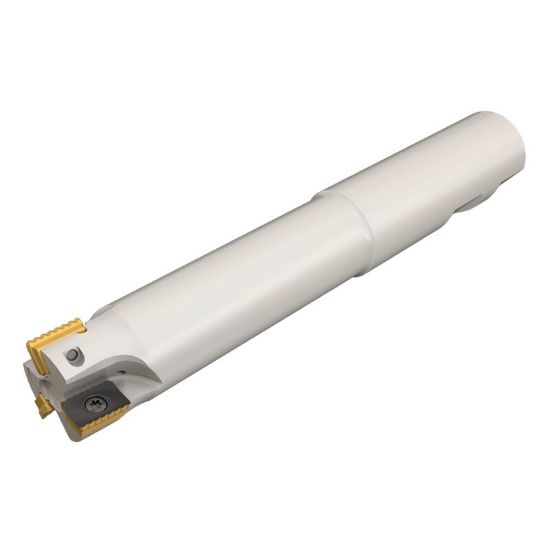

Picture of ISCAR P290 EPW100-2-4.8-W100-18 Milling Cutter 90.0° 1.000 Diameter Weldon 1.000 4.800 OAL 2 Flute

ISCAR P290 EPW100-2-4.8-W100-18 Milling Cutter 90.0° 1.000 Diameter Weldon 1.000 4.800 OAL 2 Flute

ANSI: P290 EPW100-2-4.8-W100-18

ISO: P290 EPW100-2-4.8-W100-18

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3110826
Delivery date: 3-5 days
$384.00

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Made In USA No
Insert Type Positive
Application Face Milling, Side Milling
Insert/Tool Tool
Shipping State Texas
Package Size 1
Dimensional Specifications
Insert Size Ic 18
Cutter Dia 1.0000 25.40MM
Cut Dia Min 1.0000 25.40MM
Tool Material Steel
Overall Len 4.8000 121.92MM
Cut Dia Max 1.0000 25.40MM
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Machine Side Connection Type Weldon
Depth Of Cut Max 0.7080
Flutes/Inserts 2
Cutting & Machining Properties
Cool Sply Type Through Hole
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Other
Insert Style AC
Max Ramp Angle 2.50°
Fasteners & Connectors
Insert Screw 7000402
