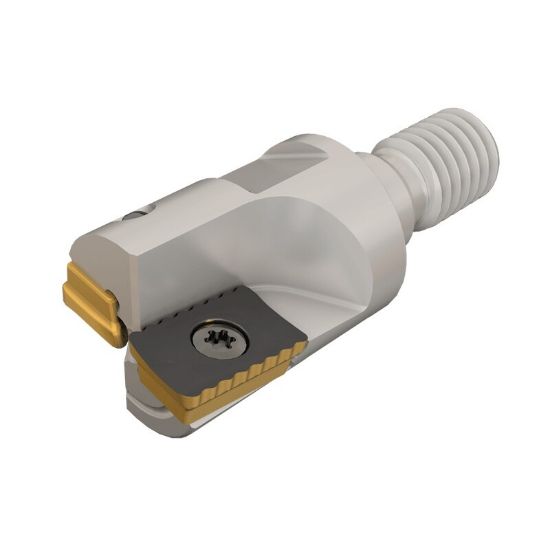

Picture of ISCAR P290 EPW D1.00-3-M12-12 Milling Cutter 90.0° 1.000 Diameter Screw On M12 2.000 OAL 3 Flute

ISCAR P290 EPW D1.00-3-M12-12 Milling Cutter 90.0° 1.000 Diameter Screw On M12 2.000 OAL 3 Flute

ANSI: P290 EPW D1.00-3-M12-12

ISO: P290 EPW D1.00-3-M12-12

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3181037
Delivery date: 3-5 days
$384.00

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling
Insert Type Positive
Package Size 1
Insert Application Roughing, Semi Finishing
Insert/Tool Tool
Made In USA No
Shipping State Texas
Dimensional Specifications
Depth Of Cut Max 0.4720
Machine Side Connection Type Screw On
Machine Side Connection Size M12
Flutes/Inserts 3
Insert Size Ic 12
Cut Dia Min 1.0000 25.40MM
Cutter Dia 1.0000 25.40MM
Tool Material Steel
Overall Len 2.0000 50.80MM
Cut Dia Max 1.0000 25.40MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Other
Insert Style AC
Cool Sply Type Through Hole
Coolant Thru Yes
Max Ramp Angle 1.40°
