  • ISCAR P290 ACK2.0-4-2.1-W150-18 Milling Cutter 90.0°, Corn Cob 2.000 Diameter Weldon 1.500 5.910 OAL 12 Flute

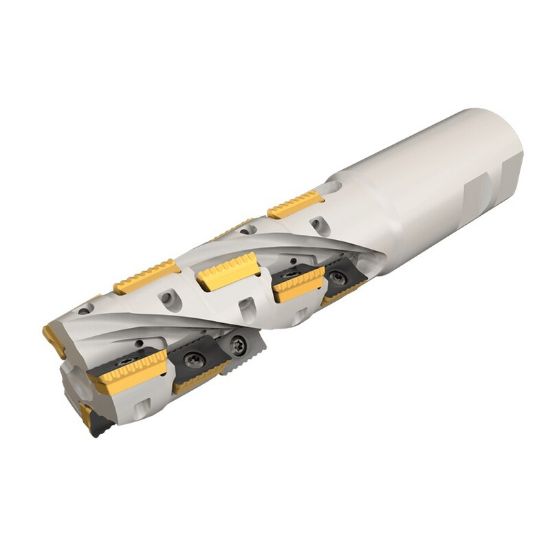

Picture of ISCAR P290 ACK2.0-4-2.1-W150-18 Milling Cutter 90.0°, Corn Cob 2.000 Diameter Weldon 1.500 5.910 OAL 12 Flute

ISCAR P290 ACK2.0-4-2.1-W150-18 Milling Cutter 90.0°, Corn Cob 2.000 Diameter Weldon 1.500 5.910 OAL 12 Flute

ANSI: P290 ACK2.0-4-2.1-W150-18

ISO: P290 ACK2.0-4-2.1-W150-18

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3106252
Delivery date: 3-5 days
$1,315.20

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Insert Application Roughing
Insert Type Positive
Application Long Edge Milling, Side Milling
Package Size 1
Shipping State Texas
Insert/Tool Tool
Dimensional Specifications
Insert Size Ic 18
Depth Of Cut Max 4.1000
Cut Dia Min 2.0000 50.80MM
Machine Side Connection Size 1.5000 38.10MM
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Cutter Dia 2.0000 50.80MM
Machine Side Connection Type Weldon
Tool Material Steel
Overall Len 5.9100 150.11MM
Flutes/Inserts 12
Cutting & Machining Properties
Cool Sply Type Through Hole
Insert Style AC
Insert Shape/Cutter Pocket Shape Other
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 7000402
