  • ISCAR P290 ACK1.5-3-2.8-W150-18 Milling Cutter 90.0°, Corn Cob 1.500 Diameter Weldon 1.500 6.300 OAL 12 Flute

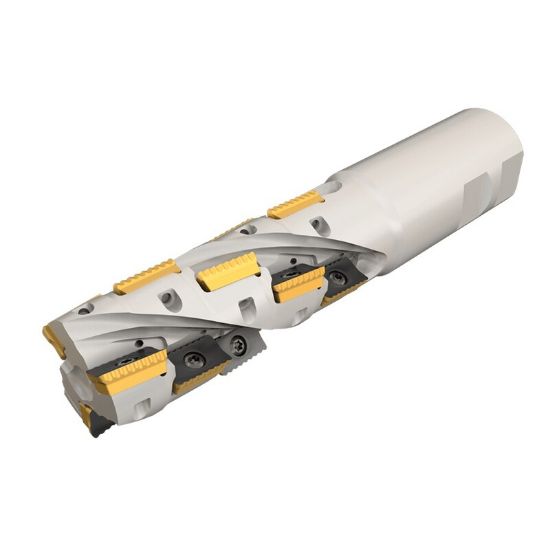

Picture of ISCAR P290 ACK1.5-3-2.8-W150-18 Milling Cutter 90.0°, Corn Cob 1.500 Diameter Weldon 1.500 6.300 OAL 12 Flute

ISCAR P290 ACK1.5-3-2.8-W150-18 Milling Cutter 90.0°, Corn Cob 1.500 Diameter Weldon 1.500 6.300 OAL 12 Flute

ANSI: P290 ACK1.5-3-2.8-W150-18

ISO: P290 ACK1.5-3-2.8-W150-18

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3106251
Delivery date: 3-5 days
$1,190.40

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Application Side Milling, Long Edge Milling
Insert Type Positive
Insert Application Roughing
Made In USA No
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Cutter Dia 1.5000 38.10MM - 1-1/2
Machine Side Connection Type Weldon
Tool Material Steel
Overall Len 6.3000 160.02MM
Depth Of Cut Max 2.1000
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Insert Size Ic 18
Cut Dia Min 1.5000 38.10MM - 1-1/2
Machine Side Connection Size 1.5000 38.10MM
Flutes/Inserts 12
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Other
Insert Style AC
Cool Sply Type Through Hole
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 7000402
