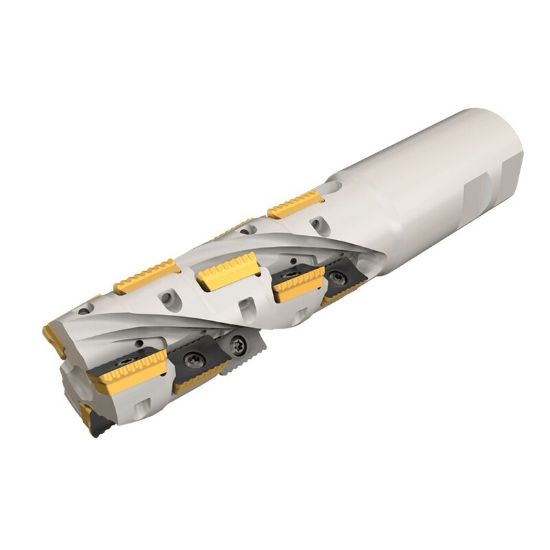

ISCAR P290 ACK125-3-1.4-W125-12 Milling Cutter 90.0°, Corn Cob 1.250 Diameter Weldon 1.250 4.330 OAL 9 Flute

ANSI: P290 ACK125-3-1.4-W125-12

ISO: P290 ACK125-3-1.4-W125-12

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3181054
Delivery date: 3-5 days
$988.80

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Insert Application Roughing
Application Long Edge Milling, Side Milling
Package Size 1
Insert Type Positive
Shipping State Texas
Insert/Tool Tool
Dimensional Specifications
Machine Side Connection Size 1.2500 31.75MM
Insert Size Ic 12
Depth Of Cut Max 0.2200
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 9
Overall Len 4.3300 109.98MM
Cutter Dia 1.2500 31.75MM - 1-1/4
Cut Dia Min 1.2500 31.75MM - 1-1/4
Machine Side Connection Type Weldon
Tool Material Steel
Cutting & Machining Properties
Cool Sply Type Through Hole
Coolant Thru Yes
Insert Style AC
Insert Shape/Cutter Pocket Shape Other
Fasteners & Connectors
Insert Screw 7004610
