  • ISCAR P290 ACK1.25-3-1.4-W1.-18 Milling Cutter 90.0°, Corn Cob 1.250 Diameter Weldon 1.000 4.645 OAL 6 Flute

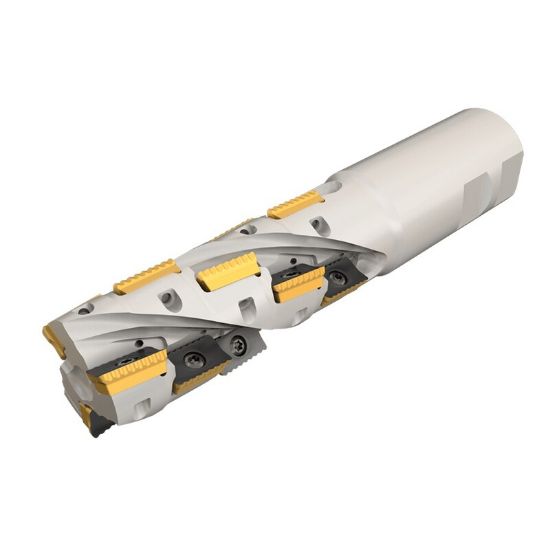

Picture of ISCAR P290 ACK1.25-3-1.4-W1.-18 Milling Cutter 90.0°, Corn Cob 1.250 Diameter Weldon 1.000 4.645 OAL 6 Flute

ISCAR P290 ACK1.25-3-1.4-W1.-18 Milling Cutter 90.0°, Corn Cob 1.250 Diameter Weldon 1.000 4.645 OAL 6 Flute

ANSI: P290 ACK1.25-3-1.4-W1.-18

ISO: P290 ACK1.25-3-1.4-W1.-18

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3110813
Delivery date: 3-5 days
$875.52

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing
Shipping State Texas
Made In USA No
Insert Type Positive
Application Long Edge Milling, Side Milling
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Depth Of Cut Max 0.7080
Cutter Dia 1.2500 31.75MM - 1-1/4
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Overall Len 4.6450 117.98MM
Flutes/Inserts 6
Insert Size Ic 18
Tool Material Steel
Cut Dia Min 1.2500 31.75MM - 1-1/4
Machine Side Connection Type Weldon
Cutting & Machining Properties
Insert Style AC
Cool Sply Type Through Hole
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Other
Fasteners & Connectors
Insert Screw 7000402
