  • ISCAR P290 ACK100-3-0.9-W.75-12 Milling Cutter 90.0°, Corn Cob 1.000 Diameter Weldon 0.750 3.740 OAL 6 Flute

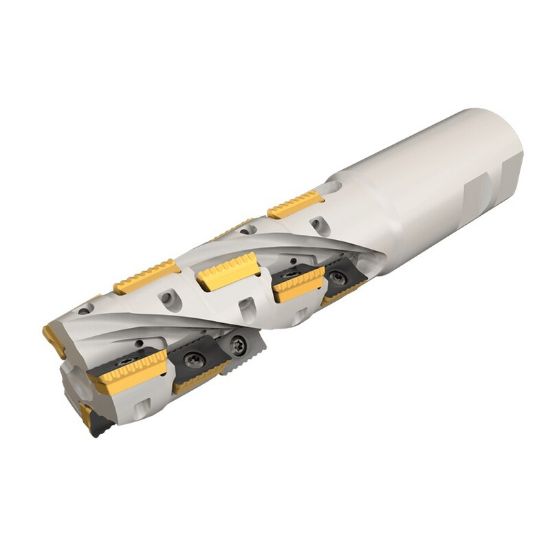

Picture of ISCAR P290 ACK100-3-0.9-W.75-12 Milling Cutter 90.0°, Corn Cob 1.000 Diameter Weldon 0.750 3.740 OAL 6 Flute

ISCAR P290 ACK100-3-0.9-W.75-12 Milling Cutter 90.0°, Corn Cob 1.000 Diameter Weldon 0.750 3.740 OAL 6 Flute

ANSI: P290 ACK100-3-0.9-W.75-12

ISO: P290 ACK100-3-0.9-W.75-12

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3110882
Delivery date: 3-5 days
$785.28
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Shipping State Texas
Application Long Edge Milling, Side Milling
Package Size 1
Insert Application Roughing
Made In USA No
Insert Type Positive
Dimensional Specifications
Machine Side Connection Size 0.7500 19.05MM
Depth Of Cut Max 1.4000
Machine Side Connection Type Weldon
Flutes/Inserts 6
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Insert Size Ic 12
Cutter Dia 1.0000 25.40MM
Cut Dia Min 1.0000 25.40MM
Tool Material Steel
Overall Len 3.7400 95.00MM
Cutting & Machining Properties
Coolant Thru Yes
Cool Sply Type Through Hole
Insert Shape/Cutter Pocket Shape Other
Insert Style AC
Fasteners & Connectors
Insert Screw 7006979
