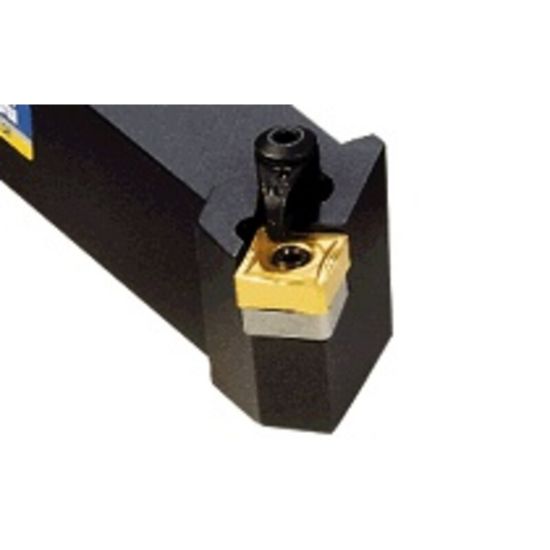

Picture of ISCAR MSSNR 16-4 Turning Stick Tool 80.0° Insert 1.000 Square

ISCAR MSSNR 16-4 Turning Stick Tool 80.0° Insert 1.000 Square

ANSI: MSSNR 16-4

ISO: MSSNR 16-4

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3600449
Delivery date: 3-5 days
$127.68

Details

Comlock holders for negative square inserts. 45° face and longitudinal lead angles.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Insert Application General Purpose
Insert Type Negative
Made In USA No
Insert/Tool Tool
Application Ext.Turning
Package Size 1
Dimensional Specifications
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Tool Width 1.0000
Insert Size Ic 12 "43"
Tool Material Steel
Machine Side Connection Type Stick Tool
Overall Len 6.0000 152.40MM
Lead Angle 45°
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 80.0°
Insert Style CN
Inter/Extern External
Hand R/L Right
