  • ISCAR MNCNT 100-4.00-MF16X1-T2 0.394" Indexable SUMOCHAM Inserts and Modular Shank GunDrill s

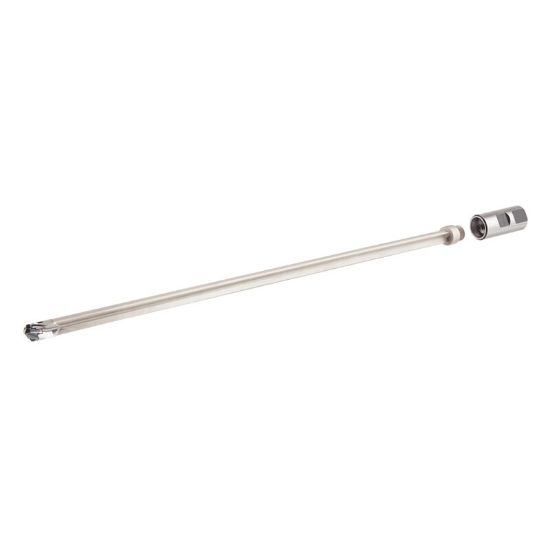

Picture of ISCAR MNCNT 100-4.00-MF16X1-T2 0.394" Indexable SUMOCHAM Inserts and Modular Shank GunDrill s

ISCAR MNCNT 100-4.00-MF16X1-T2 0.394" Indexable SUMOCHAM Inserts and Modular Shank GunDrill s

ANSI: MNCNT 100-4.00-MF16X1-T2

ISO: MNCNT 100-4.00-MF16X1-T2

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3203572
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Package Size 1
Made In USA No
Application Deep Hole Drilling, Gun Drilling
Dimensional Specifications
Cutter Dia 0.3937 10.00MM
Cut Dia Max 0.4130 10.50MM
Flutes/Inserts 2
Cut Dia Min 0.3937 10.00MM
Flute Length 15.8200 401.83MM
Dia Deep 38.0XD
Tool Material Steel
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Steel
Industry-Specific Applications
Job Shop Yes
