  • ISCAR MM S-D-L150-C16-T08-W-H SH 0.6299 OAL 5.9060 Replacable Head Acc. 89° Conical Tungsten "Heavy Metal" Single End MULTI-MASTER

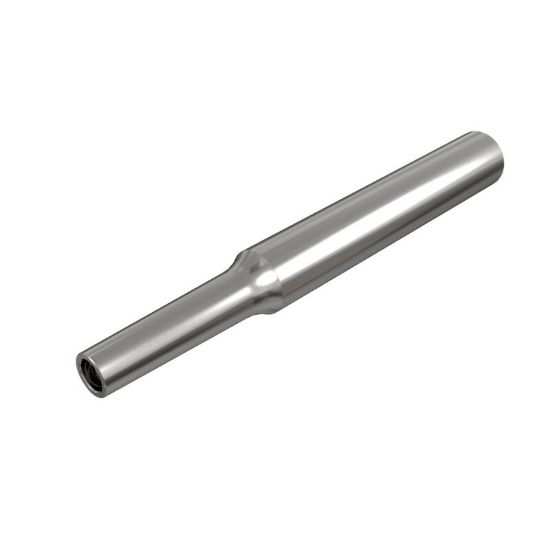

Picture of ISCAR MM S-D-L150-C16-T08-W-H SH 0.6299 OAL 5.9060 Replacable Head Acc. 89° Conical Tungsten "Heavy Metal" Single End MULTI-MASTER

ISCAR MM S-D-L150-C16-T08-W-H SH 0.6299 OAL 5.9060 Replacable Head Acc. 89° Conical Tungsten "Heavy Metal" Single End MULTI-MASTER

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3104454
Delivery date: 3-5 days
$712.32

Cutting Edge Definition

Tungsten can be made into cutting blades or have it alloyed with other elements like nickel, copper, or carbon to strengthen. Cutting tools made from tungsten or its alloys are very hard and having a very high melting point means that they can be used hours on end without melting or failing. High dampening properties for long reach aplications.

Products specifications
Attribute name Attribute value
General Product Information
Application Feed Milling, Copy Milling, Face Milling, Groove Milling, Profile Milling, Slot Milling, Circle Segment, Side Milling, Dovetail Milling
Shipping State Texas
Package Size 1
Performance Rating High Performance
Made In USA No
Dimensional Specifications
Overall Len 5.9060 150.01MM
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Machine Side Connection Size 0.6299 16.00MM
Single/Double End Single End
Length Type Standard
Shank/Pilot Dia 0.6299 16.00MM
Cutter Style Screw On Shanks
Cutting & Machining Properties
Coolant Thru No
Center Cutting No
Cutting Edge Mat Tungsten "Heavy Metal"
Industry-Specific Applications
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Agricultural YES
Medical Yes
Energy Yes
