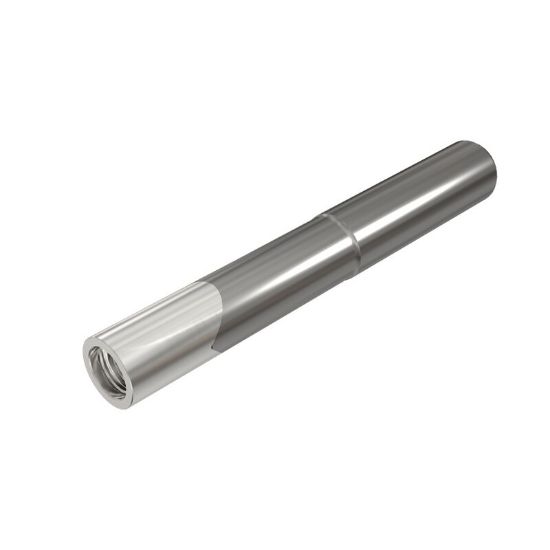

ISCAR MM S-A-L5.5/2.5C50T08C-CH SH 0.50 OAL 5.50 Replacable Head Acc. Stepped Shank Carbide Single End MULTI-MASTER

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3107245
Delivery date: 3-5 days
$467.52

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Dovetail Milling, Copy Milling, Feed Milling, Circle Segment, Groove Milling, Profile Milling, Slot Milling, Side Milling
Package Size 1
Performance Rating High Performance
Shipping State Texas
Made In USA No
Dimensional Specifications
Single/Double End Single End
Overall Len 5.5000 139.70MM
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Machine Side Connection Size 0.5000 12.70MM
Cutter Style Screw On Shanks
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Length Type Standard
Cutting & Machining Properties
Coolant Thru No
Center Cutting No
Cutting Edge Mat Carbide
Industry-Specific Applications
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Agricultural YES
Medical Yes
Energy Yes
