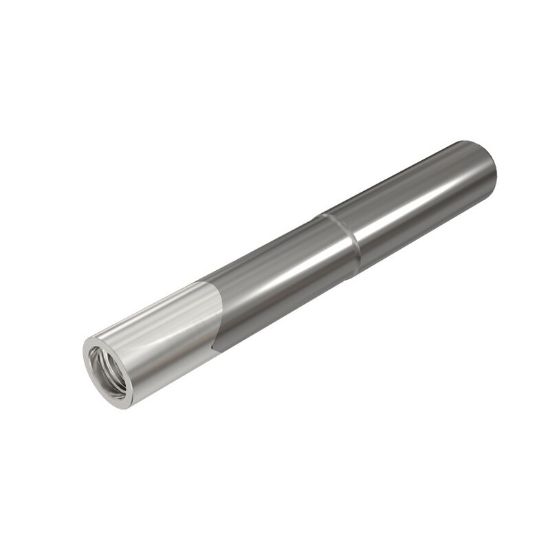

ISCAR MM S-A-L5.50-C.750-T12-C SH 0.7500 OAL 5.50 Replacable Head Acc. Stepped Shank Carbide Single End MULTI-MASTER

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3103843
Delivery date: 3-5 days
$708.48

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Circle Segment, Groove Milling, Profile Milling, Slot Milling, Side Milling, Copy Milling, Feed Milling, Dovetail Milling, Face Milling
Made In USA No
Shipping State Texas
Performance Rating High Performance
Package Size 1
Dimensional Specifications
Cutter Style Screw On Shanks
Length Type Standard
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Machine Side Connection Size 0.7500 19.05MM
Overall Len 5.5000 139.70MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Single/Double End Single End
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting No
Coolant Thru No
Industry-Specific Applications
Medical Yes
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Agricultural YES
