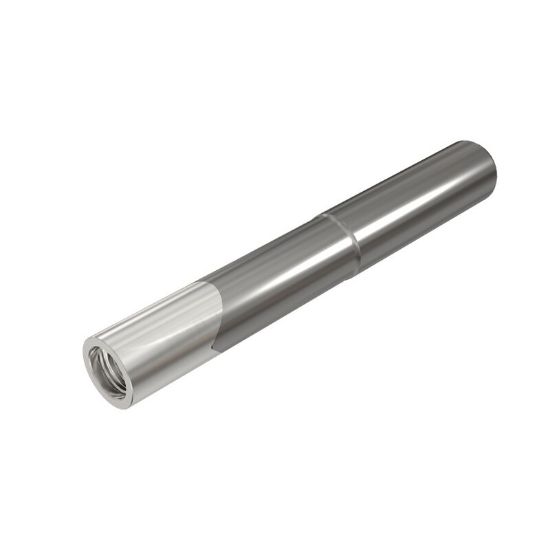

ISCAR MM S-A-L5.50-C.50-T08-M-C IC908 SH 0.50 OAL 5.50 Replacable Head Acc. Stepped Shank Carbide Single End MULTI-MASTER

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3102901
Delivery date: 3-5 days
$416.64

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Dovetail Milling, Copy Milling, Feed Milling, Side Milling, Circle Segment, Slot Milling, Face Milling, Groove Milling, Profile Milling
Performance Rating High Performance
Made In USA No
Shipping State Texas
Package Size 1
Dimensional Specifications
Overall Len 5.5000 139.70MM
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Length Type Standard
Cutter Style Screw On Shanks
Machine Side Connection Size 0.5000 12.70MM
Single/Double End Single End
Cutting & Machining Properties
Center Cutting No
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Automotive Yes
Agricultural YES
Medical Yes
Energy Yes
Aerospace Yes
Job Shop Yes
Mold Yes
