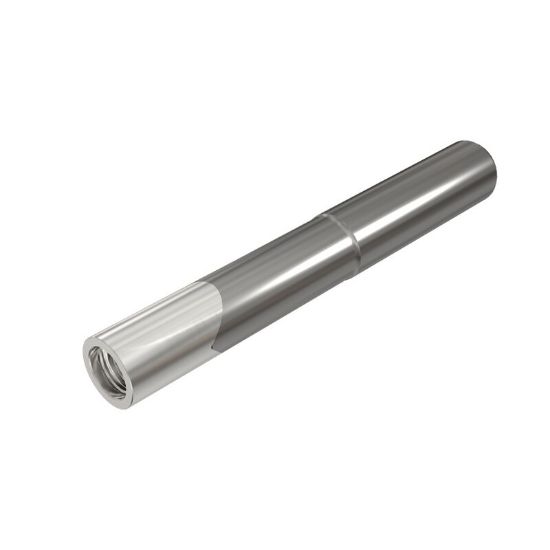

ISCAR MM S-A-L4.5/20-SL750T12C SH 0.7500 OAL 4.50 Replacable Head Acc. Stepped Shank Carbide Single End MULTI-MASTER

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3336804
Delivery date: 3-5 days
$670.08

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Side Milling, Dovetail Milling, Circle Segment, Face Milling, Groove Milling, Profile Milling, Slot Milling, Copy Milling, Feed Milling
Performance Rating High Performance
Shipping State Texas
Package Size 1
Dimensional Specifications
Length Type Standard
Cutter Style Screw On Shanks
Machine Side Connection Size 0.7500 19.05MM
Overall Len 4.5000 114.30MM
Single/Double End Single End
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting No
Coolant Thru No
Industry-Specific Applications
Medical Yes
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Agricultural YES
