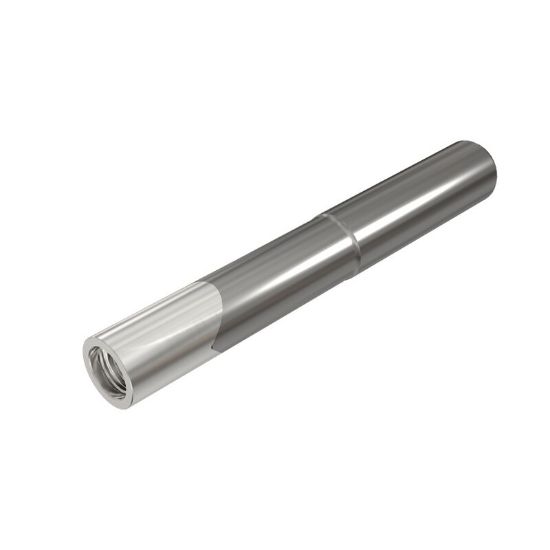

ISCAR MM S-A-L4.00-C.312-T05-C SH 0.3125 OAL 4.00 Replacable Head Acc. 89° Conical Carbide Single End MULTI-MASTER

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3103504
Delivery date: 3-5 days
$336.00

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Dovetail Milling, Side Milling, Copy Milling, Feed Milling, Circle Segment, Groove Milling, Profile Milling, Slot Milling
Package Size 1
Shipping State Texas
Performance Rating High Performance
Made In USA No
Dimensional Specifications
Single/Double End Single End
Shank/Pilot Dia 0.3125 7.94MM - 5/16
Overall Len 4.0000 101.60MM
Cutter Style Screw On Shanks
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Machine Side Connection Size 0.3125 7.94MM
Length Type Standard
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting No
Industry-Specific Applications
Agricultural YES
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Medical Yes
