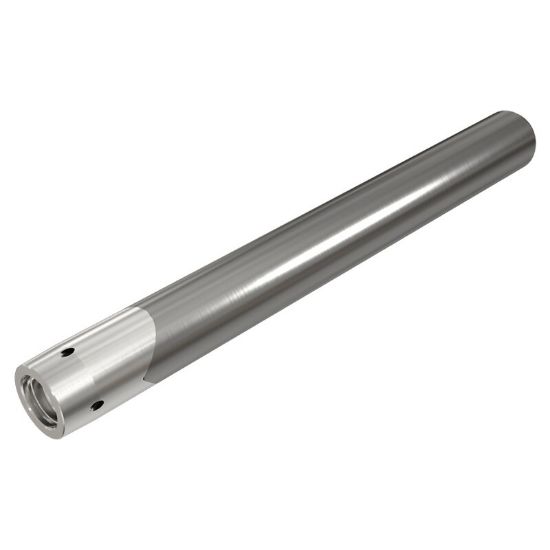

ISCAR MM GRT-095-T06 Solid Carbide cylindrical Shanks carrying slitting and grooving interchangeable Milling heads.

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2800994
Delivery date: 3-5 days
$160.32

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Performance Rating High Performance
Application Circle Segment, Groove Milling, Profile Milling, Slot Milling, Dovetail Milling, Side Milling, Face Milling, Copy Milling, Feed Milling
Package Size 1
Shipping State Texas
Dimensional Specifications
Machine Side Connection Size 0.3750 9.53MM
Length Type Standard
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Overall Len 3.1500 80.01MM
Cutter Style Screw On Shanks
Single/Double End Single End
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting No
Industry-Specific Applications
Medical Yes
Energy Yes
Agricultural YES
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
