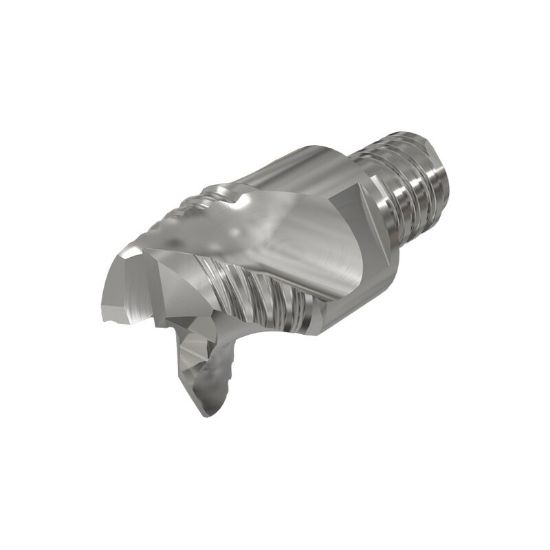

ISCAR MM ERA.625B39R008-3T10 08 IC08 DIA 5/8 SH T10 LOC 0.4200 OAL 1.2730Screw On Head Carbide Uncoated Single End Corner Radius 0.0080 0.20MM MULTI-MASTER

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC5622748
Delivery date: 3-5 days
$133.79

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Made In USA No
Application Face Milling, Side Milling
Package Size 1
Performance Rating High Performance
Dimensional Specifications
Chamfer Angle 90.0°
Overall Len 1.2730 32.33MM
Flutes/Inserts 3
Helix Angle 45°
Tool Material Carbide
Length Of Cut 0.4200 10.67MM
Inch/Metric Inch
Length Type Standard
Corner Radius 0.0080 0.20MM
Machine Side Connection Size T10
Single/Double End Single End
Dimension Description 0.625 x 0.602 x 0.420 x 1.273
Cutter Dia 0.6250 15.88MM - 5/8
End Of Tool Shape Corner Radius
Cut Rating Aluminum, Graphite, Plastic
Machine Side Connection Type Screw On
Cutter Style Carbide Rougher
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting No
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Agricultural YES
Medical Yes
Energy Yes
