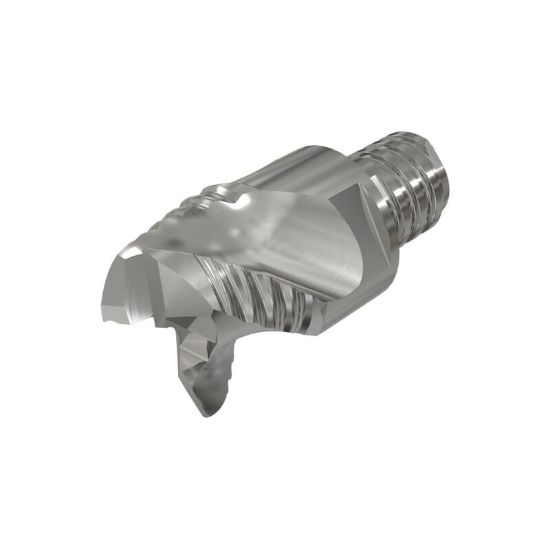

ISCAR MM ERA.500B31R008-3T08 08 IC08 DIA 1/2 SH T08 LOC 0.3300 OAL 0.9630Screw On Head Carbide Uncoated Single End Corner Radius 0.0080 0.20MM MULTI-MASTER

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC5622747
Delivery date: 3-5 days
$85.84

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Application Side Milling, Face Milling
Package Size 1
Made In USA No
Performance Rating High Performance
Dimensional Specifications
Overall Len 0.9630 24.46MM
Dimension Description 0.500 x 0.480 x 0.330 x 0.963
Chamfer Angle 90.0°
Machine Side Connection Size T08
Flutes/Inserts 3
End Of Tool Shape Corner Radius
Single/Double End Single End
Corner Radius 0.0080 0.20MM
Helix Angle 45°
Cutter Dia 0.5000 12.70MM - 1/2
Length Of Cut 0.3300 8.38MM
Length Type Standard
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Screw On
Cutter Style Carbide Rougher
Inch/Metric Inch
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting No
Industry-Specific Applications
Agricultural YES
Medical Yes
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
