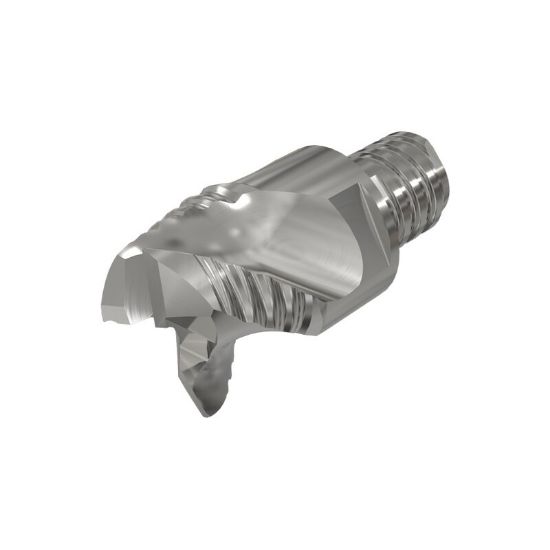

ISCAR MM ERA.375B23R008-3T06 08 IC08 DIA 3/8 SH T06 LOC 0.2500 OAL 0.7720Screw On Head Carbide Uncoated Single End Corner Radius 0.0080 0.20MM MULTI-MASTER

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC5622746
Delivery date: 3-5 days
$70.61

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Side Milling
Made In USA No
Shipping State Texas
Performance Rating High Performance
Package Size 1
Dimensional Specifications
Corner Radius 0.0080 0.20MM
Single/Double End Single End
Cutter Dia 0.3750 9.53MM - 3/8
Overall Len 0.7720 19.61MM
Helix Angle 45°
Length Type Standard
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Inch/Metric Inch
Dimension Description 0.375 x 0.360 x 0.250 x 0.772
End Of Tool Shape Corner Radius
Chamfer Angle 90.0°
Machine Side Connection Type Screw On
Machine Side Connection Size T06
Flutes/Inserts 3
Length Of Cut 0.2500 6.35MM
Cutter Style Carbide Rougher
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting No
Coolant Thru No
Industry-Specific Applications
Agricultural YES
Medical Yes
Energy Yes
Aerospace Yes
Job Shop Yes
Mold Yes
Automotive Yes
