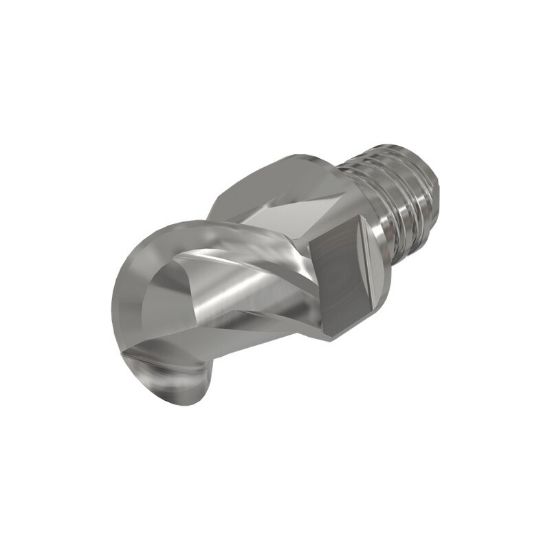

ISCAR MM EBA250B22-2T15 IC08 DIA 25MM SH 0.9410 LOC 0.8660 OAL 2.1500End Mill,Replacable Head Standard Flute High Helix Carbide Uncoated Single End Ball Nose MULTI-MASTER

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC5622624
Delivery date: 3-5 days
$164.72

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Application Ball Milling, Ball Slot Milling, Profile Milling, Side Milling, Copy Milling
Package Size 1
Made In USA No
Performance Rating High Performance
Dimensional Specifications
Length Of Cut 0.8660 22.00MM
Helix Angle 45°
Dimension Description 0.984 x 0.941 x 0.866 x 2.150
Machine Side Connection Size 0.9410 23.90MM
Overall Len 2.1500 54.61MM
Cutter Style Carbide Ball Finisher
Single/Double End Single End
End Of Tool Shape Ball Nose
Cutter Dia 0.9844 25.00MM - 63/64
Flutes/Inserts 2
Length Type Standard
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Screw On
Inch/Metric Inch
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Agricultural YES
Medical Yes
Energy Yes
