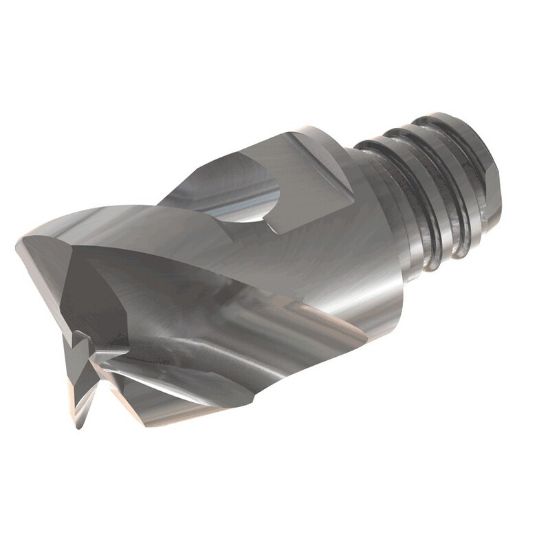

ISCAR MM EA.625B39R094-3T10 IC08 DIA 5/8 SH T10 LOC 0.3906 OAL 1.2730Screw On Head Standard Flute High Helix Carbide Uncoated Single End Corner Radius 0.0940 2.39MM MULTI-MASTER

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC5622739
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Performance Rating High Performance
Application Slot Milling, Profile Millling, Side Milling
Package Size 1
Made In USA No
Dimensional Specifications
Tool Material Carbide
Inch/Metric Inch
Cut Rating Aluminum, Graphite, Plastic
Machine Side Connection Type Screw On
Length Of Cut 0.3906 9.92MM
End Of Tool Shape Corner Radius
Chamfer Angle 90.0°
Overall Len 1.2730 32.33MM
Flutes/Inserts 3
Cutter Style Carbide Bull Nose Finisher
Helix Angle 45°
Dimension Description 0.625 x 0.602 x 0.391 x 1.273
Machine Side Connection Size T10
Single/Double End Single End
Length Type Standard
Corner Radius 0.0940 2.39MM
Cutter Dia 0.6250 15.88MM - 5/8
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Medical Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Agricultural YES
Energy Yes
