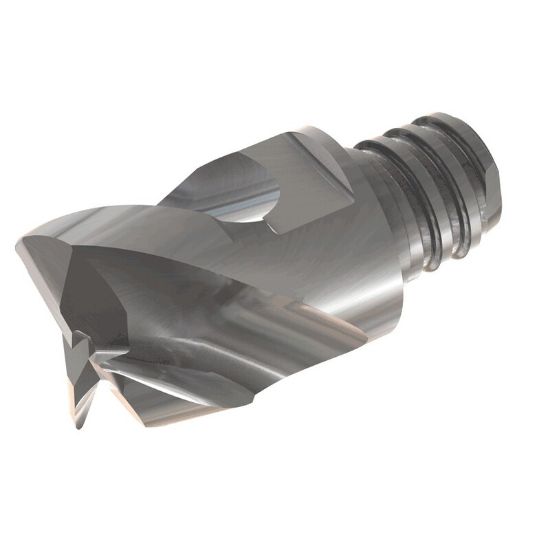

ISCAR MM EA.625B39R031-3T10 IC08 DIA 5/8 SH T10 LOC 0.3906 OAL 1.2730Screw On Head Standard Flute High Helix Carbide Uncoated Single End Corner Radius 0.0310 0.79MM MULTI-MASTER

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC5622737
Delivery date: 3-5 days
$106.72

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Profile Millling, Slot Milling, Side Milling
Made In USA No
Shipping State Texas
Performance Rating High Performance
Package Size 1
Dimensional Specifications
Length Type Standard
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Screw On
Inch/Metric Inch
Corner Radius 0.0310 0.79MM
Machine Side Connection Size T10
End Of Tool Shape Corner Radius
Single/Double End Single End
Chamfer Angle 90.0°
Overall Len 1.2730 32.33MM
Flutes/Inserts 3
Cutter Style Carbide Bull Nose Finisher
Cutter Dia 0.6250 15.88MM - 5/8
Length Of Cut 0.3906 9.92MM
Dimension Description 0.625 x 0.602 x 0.391 x 1.273
Helix Angle 45°
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Automotive Yes
Agricultural YES
Medical Yes
Energy Yes
Aerospace Yes
Job Shop Yes
Mold Yes
