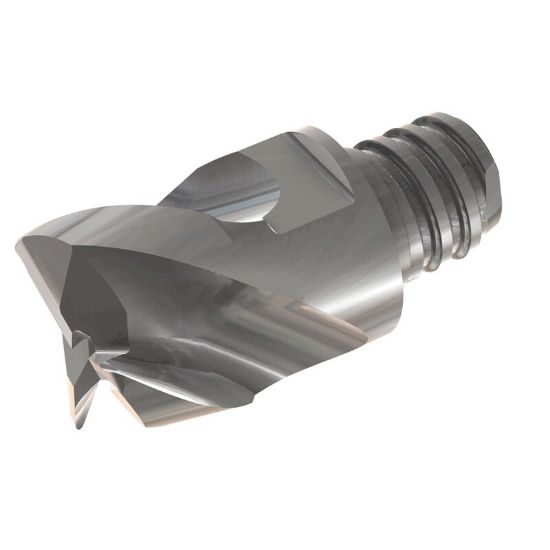

ISCAR MM EA.500B37R020-2T08 IC08 DIA 1/2 SH T08 LOC 0.3740 OAL 0.9620Screw On Head Standard Flute High Helix Carbide Uncoated Single End Corner Radius 0.0200 0.51MM MULTI-MASTER

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC5621328
Delivery date: 3-5 days
$64.19

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Profile Millling, Slot Milling
Shipping State Texas
Package Size 1
Performance Rating High Performance
Made In USA No
Dimensional Specifications
Dimension Description 0.500 x 0.488 x 0.374 x 0.962
Corner Radius 0.0200 0.51MM
Tool Material Carbide
Inch/Metric Inch
Single/Double End Single End
Cut Rating Aluminum, Graphite, Plastic
Machine Side Connection Type Screw On
Machine Side Connection Size T08
Chamfer Angle 90.0°
Length Of Cut 0.3740 9.50MM
Cutter Style Carbide Bull Nose Finisher
Flutes/Inserts 2
Length Type Standard
Cutter Dia 0.5000 12.70MM - 1/2
Overall Len 0.9620 24.43MM
Helix Angle 45°
End Of Tool Shape Corner Radius
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Agricultural YES
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Medical Yes
Energy Yes
