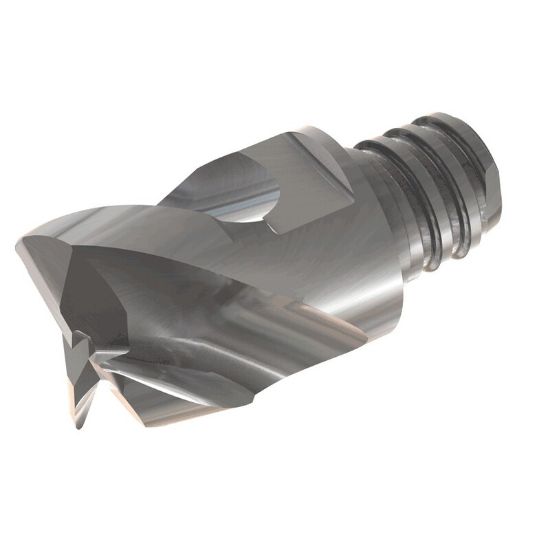

ISCAR MM EA.375B27R020-2T06 IC08 DIA 3/8 SH T06 LOC 0.2700 OAL 0.7740Screw On Head Standard Flute High Helix Carbide Uncoated Single End Corner Radius 0.0200 0.51MM MULTI-MASTER

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC5621316
Delivery date: 3-5 days
$51.27

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Application Slot Milling, Profile Millling, Side Milling
Made In USA No
Package Size 1
Shipping State Texas
Dimensional Specifications
Chamfer Angle 90.0°
Machine Side Connection Size T06
Length Of Cut 0.2700 6.86MM
Cutter Style Carbide Bull Nose Finisher
Length Type Standard
Corner Radius 0.0200 0.51MM
Flutes/Inserts 2
Dimension Description 0.375 x 0.360 x 0.270 x 0.774
Cutter Dia 0.3750 9.53MM - 3/8
Helix Angle 45°
End Of Tool Shape Corner Radius
Single/Double End Single End
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Screw On
Overall Len 0.7740 19.66MM
Inch/Metric Inch
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Automotive Yes
Aerospace Yes
Job Shop Yes
Mold Yes
Agricultural YES
Medical Yes
Energy Yes
