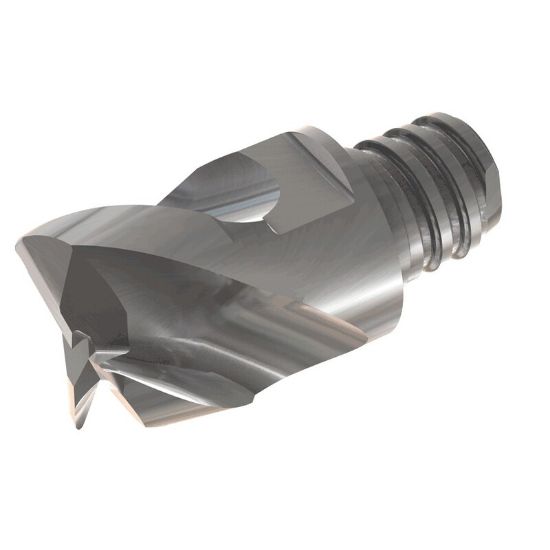

ISCAR MM EA.312B20R020-3T05 IC08 DIA 5/16 SH T05 LOC 0.20 OAL 0.6700Screw On Head Standard Flute High Helix Carbide Uncoated Single End Corner Radius 0.0200 0.51MM MULTI-MASTER

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC5621353
Delivery date: 3-5 days
$47.71

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Performance Rating High Performance
Application Slot Milling, Profile Millling, Side Milling
Package Size 1
Made In USA No
Dimensional Specifications
Corner Radius 0.0200 0.51MM
Tool Material Carbide
Inch/Metric Inch
Cut Rating Aluminum, Graphite, Plastic
Machine Side Connection Type Screw On
Length Of Cut 0.2000 5.08MM
End Of Tool Shape Corner Radius
Single/Double End Single End
Dimension Description 0.313 x 0.300 x 0.200 x 0.670
Chamfer Angle 90.0°
Cutter Dia 0.3125 7.94MM - 5/16
Flutes/Inserts 3
Cutter Style Carbide Bull Nose Finisher
Overall Len 0.6700 17.02MM
Helix Angle 45°
Machine Side Connection Size T05
Length Type Standard
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Medical Yes
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Agricultural YES
